INOX Liquid Level Gauges Type Ranger

INOX equipment is synonymous for high resistance to acids and caustics, it is seawater proof and widely accepted in a large range of industrial applications, in medical use as well as food industry, chemical and petro industry (on and off shore), mining, water treatment (desalination!) etc. Non-ferrous metals e.g. Al, Zn, Sn, Cu and their alloys don’t have these characteristics. INOX devices are designed for highest demand in function and safety. They can be protected according to the ATEX directives. Special sealings made of Kalrez® for temperatures up to +360°C on request.

Features:

INOX - Liquid Level Gauge
Dust and water proofed ventilation acc. to IP44
Sight glass made of borsilicate glass
All metal parts are made of stainless steel AISI 316L (1.4404)
Acid- and seawater resistant
Max. temp. +360 °C, depending on the seal material
Other size, threads, sight markings on request (metric, BSPP, BSPT, NPT)
Optional acc. to ATEX

Socket connection:

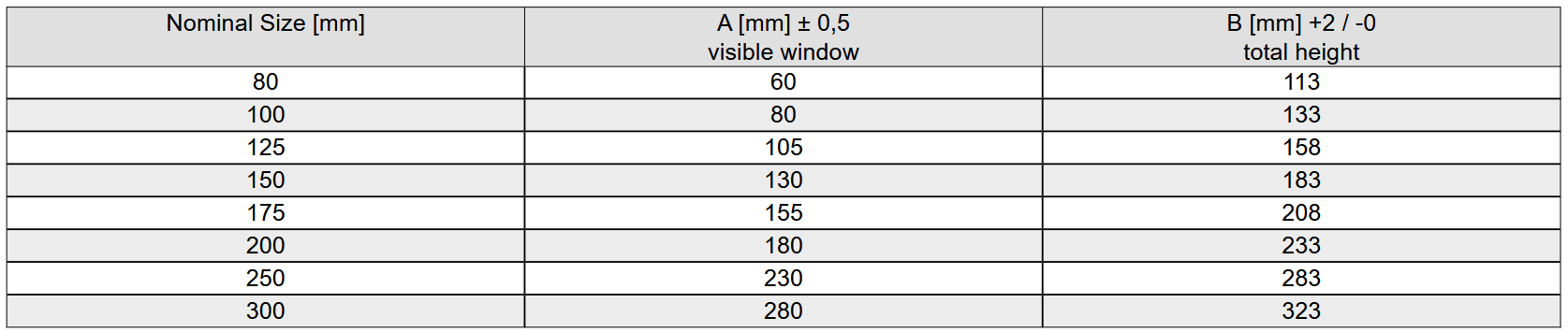

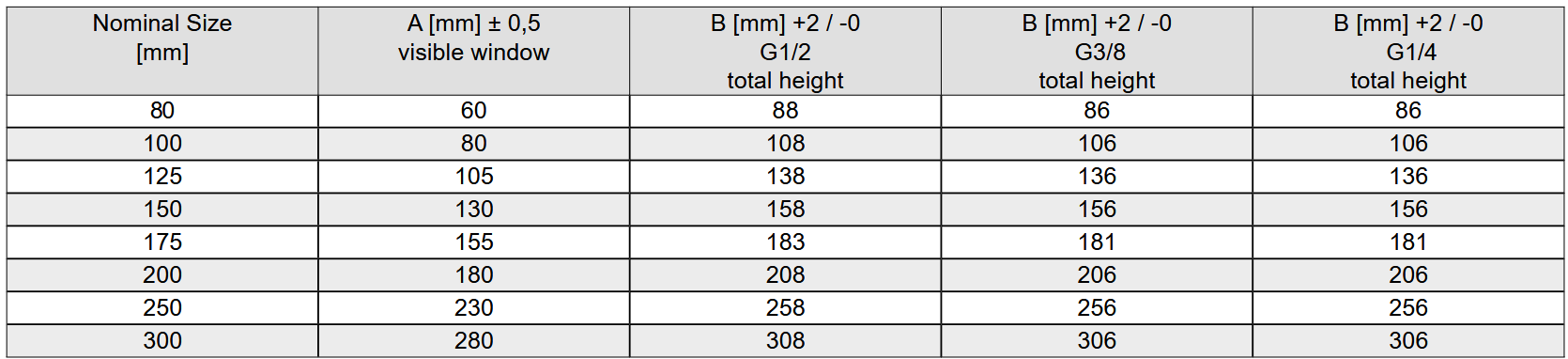

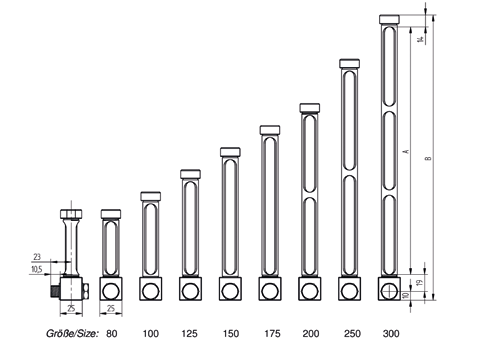

Frame sizes:

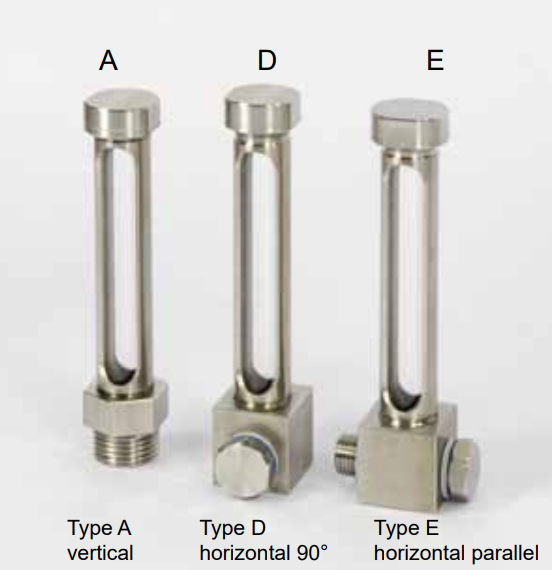

Three mounting styles available:

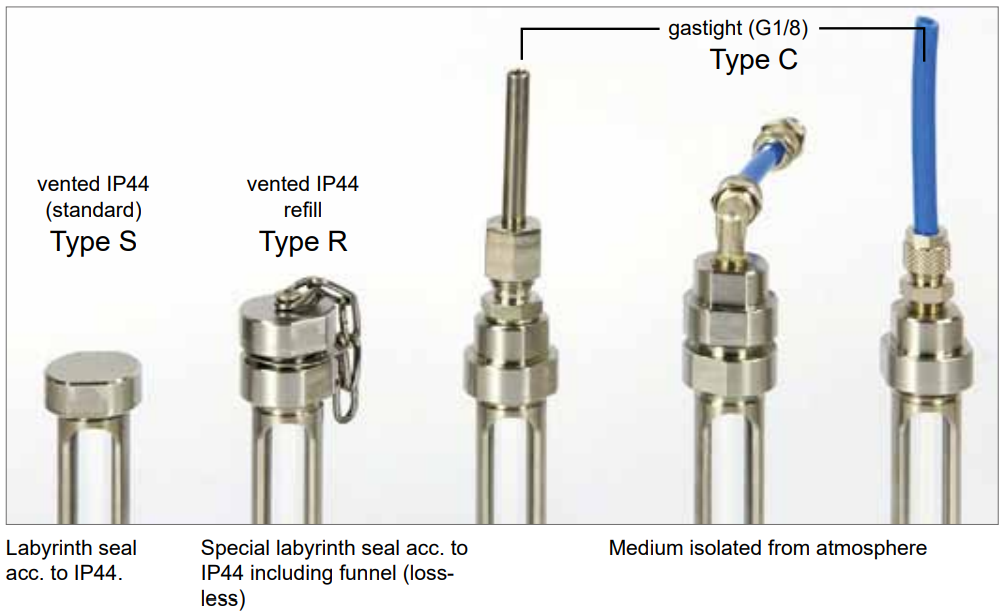

Cap types for Liquid Level Gauge

Examples for customization

Type Ranger, socket type D with banjo bolt and port for sample valve as an accessory

Type Ranger, socket type D with banjo bolt, port and thermometer as an accessory

Ranger according to ATEX-Directive:

According to ATEX-Directive DIN EN 13463-1, Random tests of light transmitting parts for use in Ex-area. A protection sleeve of acrylic glass or polycarbonate over the steel hull ensures the necessary protection. Ventilation dust and waterproofed acc. to IP44. Made of glass and stainless steel AISI 316L (1.4404). Acid and seawater resistant. Combinable with any socket (horizontal-, vertical) or cap type.

Important: For ordering refer to table!

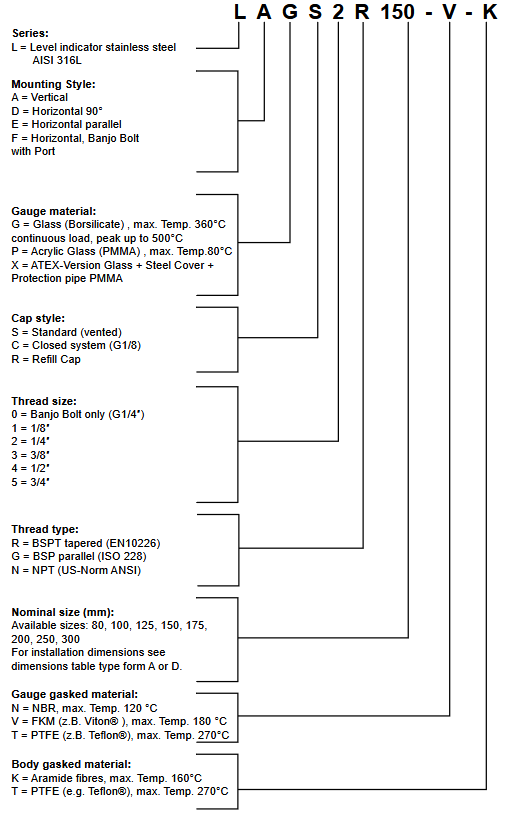

Type code:

INOX Liquid Level Gauges Type Ranger

Order example:

LAGS2R150-V-T is a Stainless Steel indicator with a vertical connection thread (Type A), glass indicator gauge,
a standard vented cap, a 1/4″ BSPT adapter thread, 150 mm nominal size, FKM and PTFE gaskets.

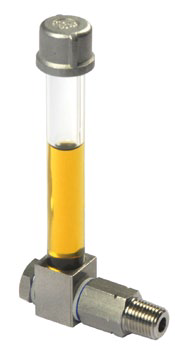

INOX Liquid Level Gauges Type Vista

The new generation of liquid level gauges – 3 D sight – visibility from any position

Vista is our new innovative liquid level gauge characterized by a solid design, offering all-round visibility through the plastic tube which is firmly fixed on the metal body. The length of the plastic tube and level markings can be made according to your order. Available with a cap suitable for closed system applications or a refill cap.

In comparison with the standard liquid level indicators made of brass, Vista offers significant advantages: Foreign particles or water from the environment can not enter the system, which is often the case with standard brass indicators because of their fully exposed ventilation hole.

Vista indicators are vented through a unique labyrinth (IP34).

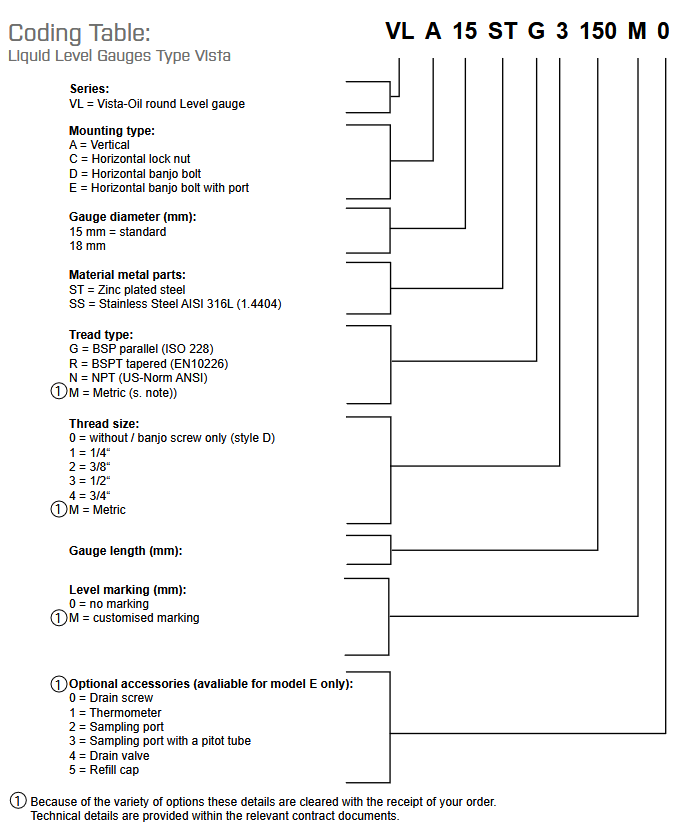

The system consists of 4 basic models

Type A

Vertical

Type C

Horizontal Lock Nut

The whole device must be rotated for mounting

Type D

Horizontal Banjo Bolt
Push on design fixed with banjo bolt

Type E

Horizontal Banjo Bolt
with Port

Optional Accessories

Type E
with Drain screw

Type E with
Thermometer

Type E with
Drain Valve

Type E with
Sampling Port

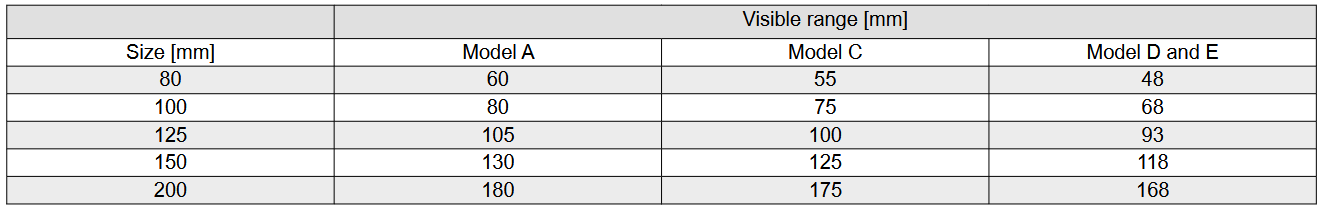

Dimansions

Standard for all types: 1/4‘‘, 3/8‘‘, 1/2‘‘, 3/4“‚ threads BSPP, BSPT or NPT. Other sizes on request. Level markings possible.
General:
Sight Pipe: PMMA Gaskets Aramide fibres
Tmax: 80°C
