Vent and breather-screws and plugs
Dust and water protected vents according to IP34, stainless steel AISI 316L / 1.4404These devices are intended to prevent the build-up of pressure / vacuums within a closed system (for example gearbox, bearing housing, tanks etc.) which may arise due to the operation (heating, dynamic, change of the oil level). The breather helps maintain a constant atmospheric pressure in the housing.
At the same time, the „ventilated“ space is protected against the penetration of unwanted media (water, dust, etc.).

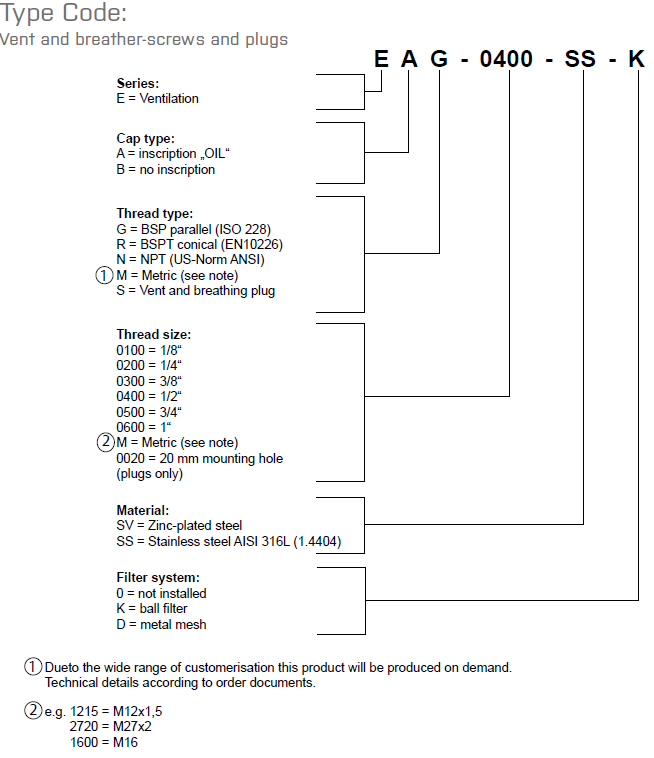

Order example:
Type-No.: EAG-0400-SS-K
Ventilation with inscription „OIL“, thread type BSW 1/2“, material stainless steel 316L (1.4404), with ball filter system.

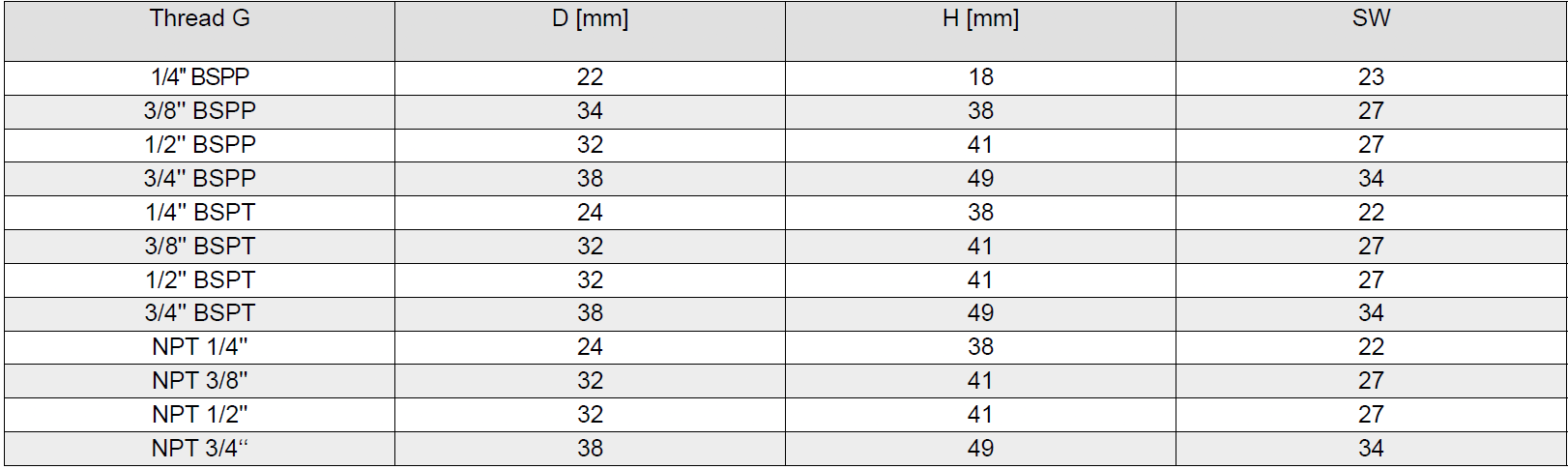

Standardised conections:
1/4‘‘, 3/8‘‘, 1/2‘‘, 3/4‘‘ thread types BSPP, BSPT und NPT.
Other threads sizes and types or thread undercut according to DIN 3852-2 on request.
Kappe auch ohne Beschriftung „OIL“ ́ verfügbar.
Andere Beschriftungen auf Anfrage
