Accessory parts for Ranger, Vista, Varia

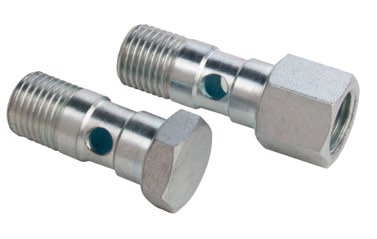

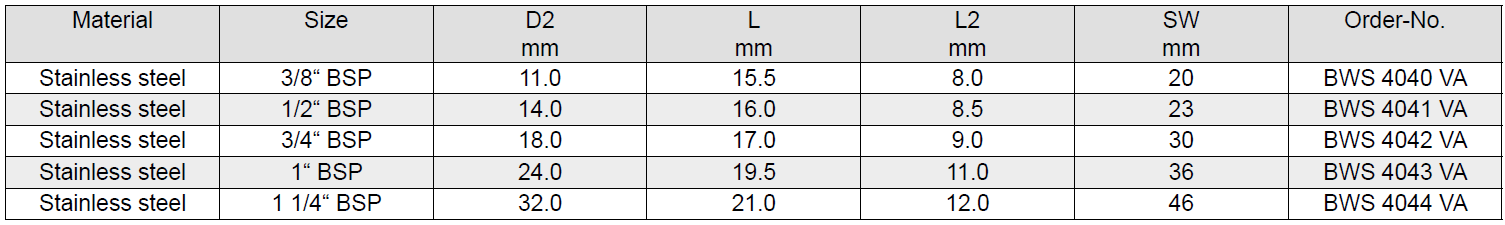

Banjo bolt for liquid level gauges
The main body of the INOX liquid level gauges is mounted to your equipment with a banjo bolt, available in two versions. The simple
banjo bolt is used to connect the indicator to the fluid system whose level is to be observed.
Additionally a banjo bolt with a through bore is available.This design enables the installation of:
- Temperatur- or Level sensor system
- Drain screw
- Drain velveT
- Thermometer
- Sampling port

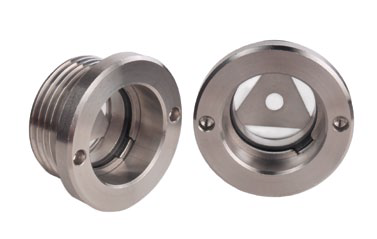

Front mounted viewports, ATEX
The new design offers hex wrench mounting torques. Additionally the field of view is enlarged by 20%. Sight glass thickness of 3mm gives you more safety than similar products. Built for pressures up to 4 bar and temperatures up to 130°C. Design according to German ATEX-Richtlinie DIN EN 13463-1. Random test of light transmitting parts for use in Ex-area (explosive atmospheres).
Material: Stainless Steel 316L (1.4404).
Other designs or special gasket materials on request.

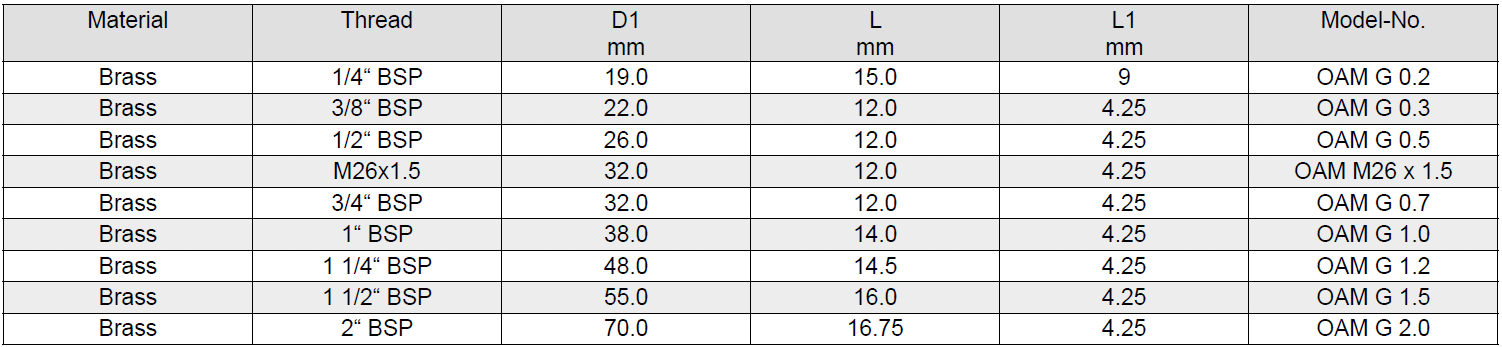

Front mounted viewports
The new design allows tightening torques that are comparable hexagonal head screws. In addition, the field of view has been enlarged by 20%. The use of a 3 mm thick glass significantly increases safety. Operating pressure up to 4 bar, max. temperature 130 °C.
Material: brass. Other versions or special seal (Viton®) on request.
Hexagonal Viewports
Material: Stainless steel AISI 316L (1.4404), Zinc-plated steel or Aluminium. Other designs in brass and special thread on request.
Operating pressure up to 58psi (4bar), max. temperature 120°C
