Sump Bottle “Oil-Watch-SB”
plastic reservoir
With Oil-Watch sump bottles, users have an immediate visual inspection of the oil and the ability to drain any accumulated water.
The SB is mounted directly to the drain port located at the bottom of a reservoir or machine. Draining by valve (model DV) or plug
screw (model DP) is utilized to drain off any water contamination. Any sediments or particles in the oil will settle to the bottom of the
bottle. Due to inspection, the user can determine further actions.
Please note:
Oil should be clear and bright in sump bottles.
If water or sediment is observed, remove immediately and
investigate source. Up to 70% of equipment fails prematurely
due to contamination in lubricants.
Features:
- Available in stainless steel 316L (1.4404) or zinc-plated steel
- Plastic reservoirs made of PA6T (T max 85° C) for long life and
impact resistance - Solid steel, no die-cast zinc or other colored non-ferrous metals
- Gaskets NBR
- Reservoir removable for easy cleaning

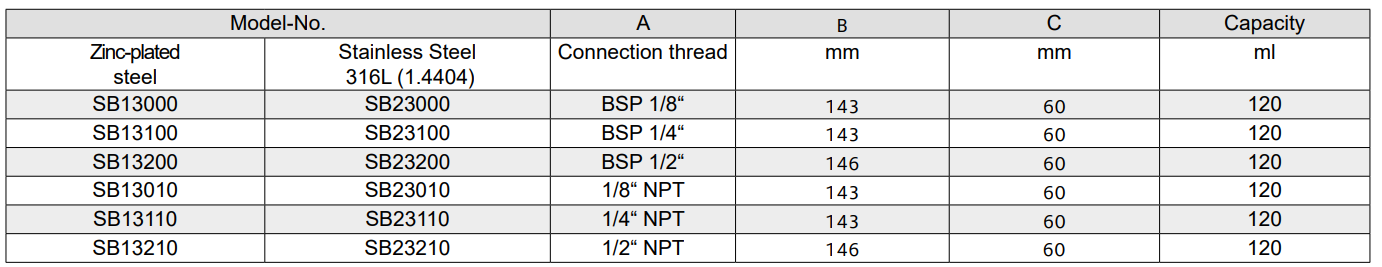

The required draining option is specified by adding the appropriate suffix to the Model No:
DV = Drain Valve
DP = Drain Plug
Order example:
Model-No SB23100-DV
Oil-Watch sump bottle made of Stainless Steel,
120 ml PA6T reservoir, Connection G 1/4“,
NBR gasket and a Drain Valve
